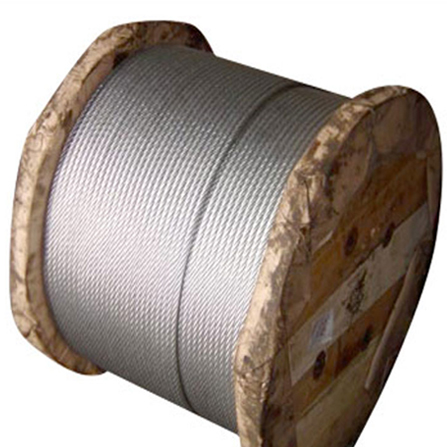

Inner Carrier Wire Rope

Inner Carrier Wire Rope

We are manufacturing high tensile and flexible galvanized inner carrier wire rope with perfect lay and uniform dia 4.9mm for marble and granite quarrying for optimum life, which is suitable for accessories of inner dia 5mm to 5.1mm. We are also manufacturing high tensile wire rope especially for concrete and RCC Cutting, for bock dressing (Squaring) and 3.8mm wire for Multi Wire Sawing for sectioning the blocks and for profile cutting of stones for optimum life.

Our special developed High Tensile Inner Carrier Steel Wire Rope Available in standard Dia. 4.9mm(+/-0.05mm) for multi application like; Marble and Granite Quarrying, Concrete cutting, Marble and Granite Block Squaring(Dressing) diamond wires for Optimum life and more out put. The Rope is available in standard length 505 Mtrs .per Wooden Spool.

The same Rope is used for above said multi applications for Springs mounted assembled diamond wires for marble cutting, Rubber coated diamond wires and Plastic coated diamond wires for granites and concrete cutting.

Technical Specification Of Wire Rope:

DIAMETER OF ROPE : 4.9mm ( +/- 0.05)
CONSTRUCTION : 6x7
MAIN CORE : WSC (1x19 Wires)
GRADE OF WIRE : Galvanized
LAY : R.H.O.L.
BREAKING LOAD : 2150 - 2250 Kgs.
